Brand: ZJchao

Features:

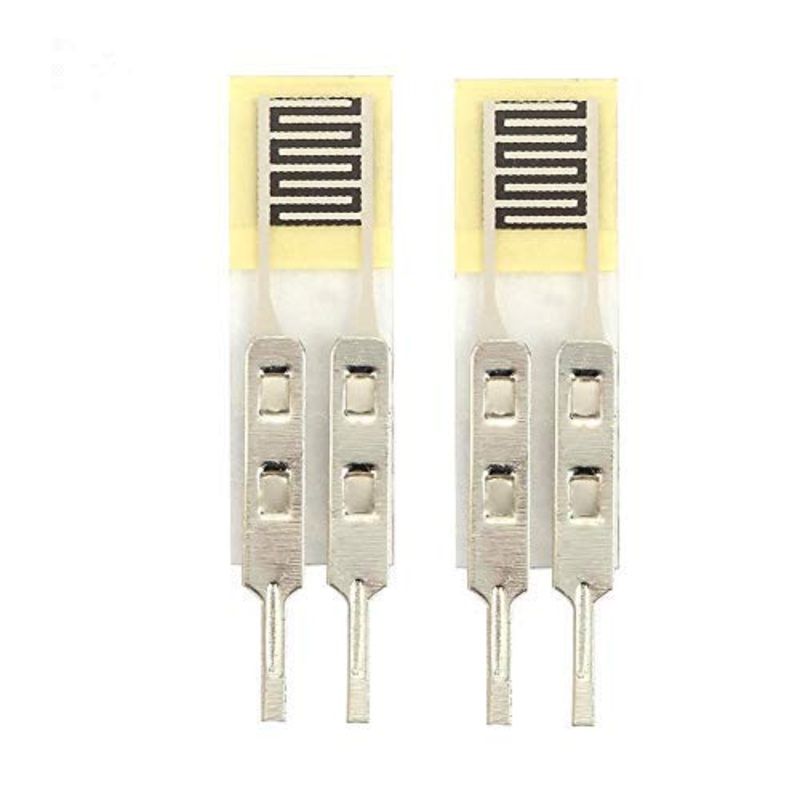

• HIGH TECH MATERIAL: This flexible pressure sensor is based on new nanometer pressure-sensitive high quality material , the sensor is durable and has long service life. supplemented by ultra-thin film substrate.
• FLEXIBILITY: This flexible thin film pressure sensor can be converted into a corresponding electrical output using simple circuit. It is widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment and so on.
• HIGH PERFORMANCE: The RP-S resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases. With a highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
• FEATURE: It has pressure sensitive function as well as water-resistant function.Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting.
• SELF-ADJUSTABLE: When sensor detects outside pressure, the resistance of sensor will change.The pressure sensor supports static/dynamic pressure sensing, and has fast response speed.

Part Number: ZJchaopqvrsubmhx

Details: This flexible pressure sensor is made of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometer pressure sensitive layers.
-Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
-When sensor detects outside pressure, the conductivity of sensor will change, and increases along with pressure.
-It is highly resistive when there is no load, and resistance will decrease as pressure increases.
-Pressure can be converted into a corresponding electrical output using simple circuit.

Features:
1.This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate.
2. Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
3. It has pressure sensitive function as well as water-resistant function.
4. When sensor detects outside pressure, the resistance of sensor will change.
5. Pressure can be converted into a corresponding electrical output using simple circuit.

Specification:
Model: RP-S5-ST
Thickness: 0.25 mm
Trigger force: 10 g, triggered when resistance is less than 200 k by default
Pressure sensing range: 10 g ~ 1 kg
Pressure action mode: Static or dynamic (frequency within 10 Hz)
Non-trigger resistance: More than 10 M
Activation time: less than 0.01 S
Operating temperature: -40 ~ +85
Lag: +10%, (RF+ – RF-)/FR+, 1000g force
Response time: <10 ms
Drifting: <5%, 2.5Kg force static load 24H Weight: 1g / 0.04oz (approx.)
Package list:
2 * Pressure Sensors

Package list:
2 * Pressure Sensors

Package Dimensions: 4.0 x 3.0 x 0.0 inches
