Mill Dia 1/8″ Shank Dia 1/8″ Length of Cut 3/4″ Overall Length 2-1/4″

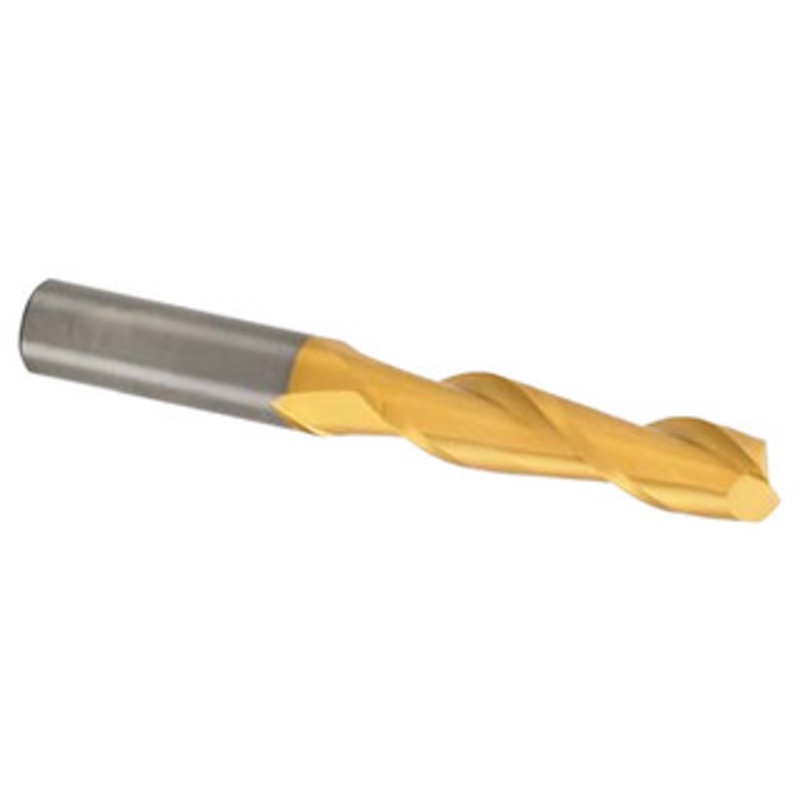

Atrax 2 Flute TiN Coated Centercutting Single End Mill
1/8″ Mill Dia, 1/8″ Shank Dia, 3/4″ LOC

Solid Micrograin Carbide, Stub, Regular, Long and Extra Long Lengths
30 RH Spiral RHC

Features:

• Surface Treatments: TiN (Titanium Nitride)
• General purpose use
• Extends tool life
• Used for aggressive machining of steels
• Requires increase of 25 to 30% in machining speeds vs. HSS

Tolerances Size Tolerance Shank Dia. All Sizes +.000/-.0005″ Cutting Dia. 1/32 – 1/4″ +.000/-.002″ 9/32 – 1″ +.000/-.003″
