Chuck Size 10″ Spindle D1-6 Thru Hole 2.56″

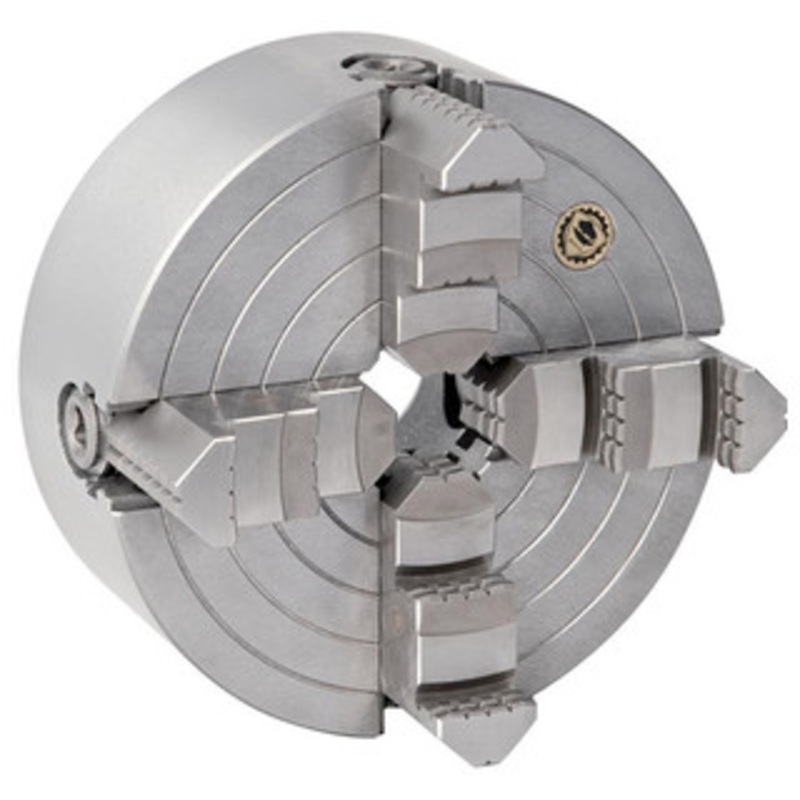

Bison 4-Jaw Independent Lathe Chuck
10″ Size, D1-6 Spindle – 7-853-1036

• Four-jaw standard duty independent Lathe Chucks with solid reversible jaws, spheroidal graphite iron body.
• The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are case hardened steel.
• These chucks feature jaws that are individually adjustable, allow firm gripping of odd shaped work and the jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force.

Features:

• Jaws are individually adjustable, allowing firm gripping of odd shaped work
• (4) Jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force
• Chuck bodies are semi-steel
• Jaws are made of high quality carbon steel and hardened
• Thrust bearings and operating screws are made of case hardened steel
• Made in Poland

Specifications:

BRAND BISON MODEL # 7-853-1036 CHUCK SIZE 10″ SPINDLE D1-6 MOUNT Rear THRU HOLE 2.56″ TOOL MATERIAL Semi-Steel Body SELF CENTERING No TYPE Independent Lathe Chuck FOR USE WITH D1-6 NO. OF JAWS 4 SERIES D1 SIZE 10″ WEIGHT 61 lbs. COUNTRY OF ORIGIN POLAND

Click to view the Series 7-853 Dimensional Data

See all Bison 4-Jaw Independent Lathe Chucks
