Morse Taper MT 5 Max. RPM 2500 Load Capacity 4400 lbs. Accuracy 0.0002″

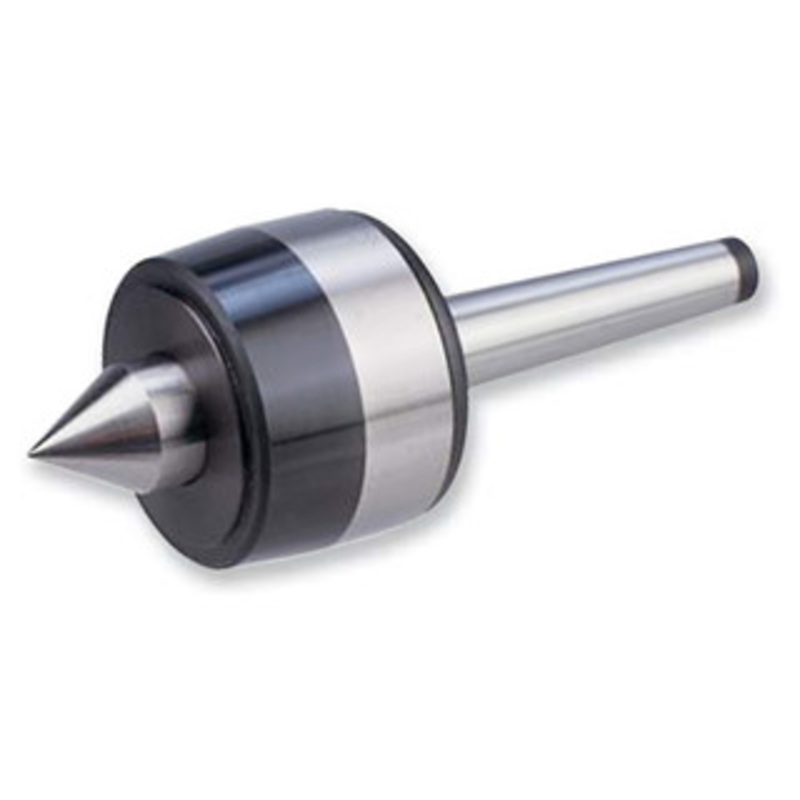

Bison Super Precision Live Center, MT5

• Machined from one piece of forging, hardened and precisely ground
• Lubricated with a special grease and do not require any additional lubrication
• Three precision high-quality bearings are protected by a special steel shield and neoprene seal

Specifications:

Super Precision Live Centers ITEM NUMBER 67-098-4 MORSE TAPER MT 5 OUTSIDE DIA. (D) 3.35″ POINT DIA. (d) 1.61″ OAL (L) 9.33″ POINT LENGTH (L1) 1.77″ PROJECTION LENGTH (L2) 4.23″ MAX. RPM 2500 LOAD CAPACITY 4400 lbs. ACCURACY 0.0002″
