Brand: Cloudray

Color: Set a (Usa Lens Si Mirror)

Features:

• 7 PCS in 1 Set: complete parts for co2 cutter head installation and DIY.
• Application: replacement parts for co2 engraving and cutting machine.
• C Series head and 2 kinds of mirror mounts are made of aluminium material with black oxide coating
• Integrative Fixture C Series Head With Air Assist Nozzle, Concentric Ring Locking Lens Tube Precise Optical Path
• Package: 1set C Series Head Set & 1pcs USA ZnSe FocusingLens(D20mm FL50.8)& 3pcs Si Mirrors (D25mm)

Binding: Office Product

model number: Set A

Part Number: MP09JNLP508AS

Details:

CO2 Laser Head and Mirror Mounts:

Made of aluminium with black oxidiation coating.

Integrative fixture mount with air assist nozzle.

Match for mirror diameter: 25mm,lens diameter: 20mm andfocal length of lens: 50.8mm

CO2 Laser Focus Lens(Diameter: 20mm Focal Length: 50.8mm)

Material: USA CVD ZnSe

Diameter tolerance: +0/-0.1mm

Wavelength:10.6um

Thickness tolerance: +0/+0.2mm

Transmittance: 99.5%

FL Tolerance: <2%

Clear Aperture: >90%

Surface Figure: 2 per 1″Dia

AR/AR coating: R<0.5% per surface

Surface Quality: 40-20scratch and dig

CO2 Laser Mirrors (Diameter: 25mm)

Mateial: Gold-coated Si

Wavelength: 10.6 m

Diameter Tolerance: +0/-0.13 mm

Thickness Tolerance: 0.25 mm

FL Tolerance: < 2%

Centration: < 3 arc minutes

Clear Aperture: > 90%

Surface Figure: < /2 per 1 inch diameter

Surface Quality: 40-20 scratch and dig

AR/AR coating: R < 0.5% per surface

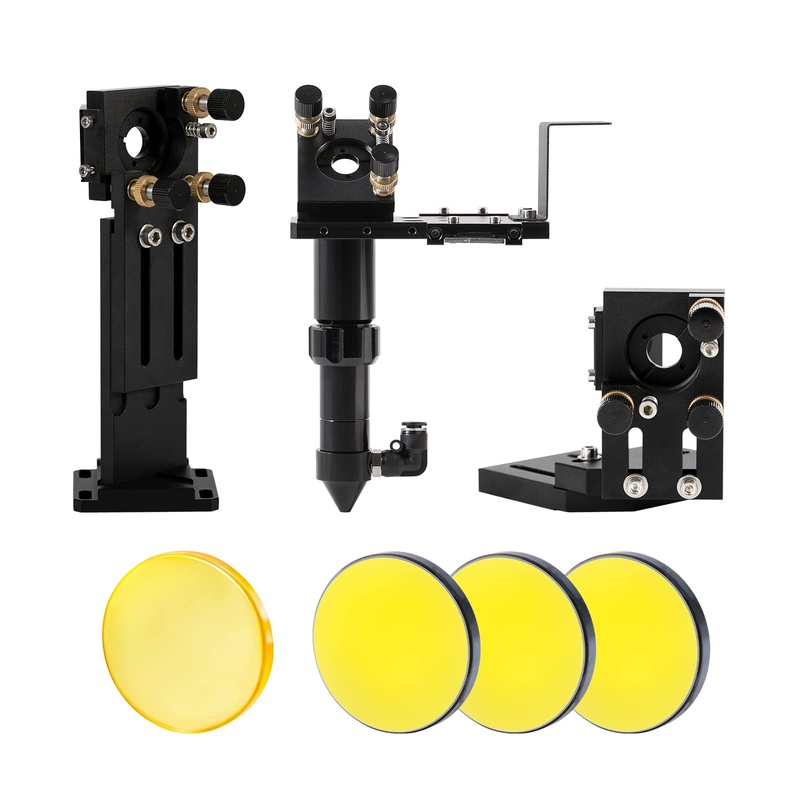

Set APacking List:

1 Set CO2 Laser Head

1 Pcs The first mirror mount

1 Pcs The second mirror mount

1 Pcs USA CVD ZnSe Focus Lens Dia.20mm FL50.8mm

3 Pcs Si Laser Mirror Dia.25mm

EAN: 0661021767039

Package Dimensions: 10.3 x 7.5 x 6.1 inches
