Brand: Cloudray

Color: F100 D70x70 (M85) (0-100w)

Features:

• Superior PerformanceCloudray f-theta lens for ultra-fine laser marking, f theta lens play a major role in many of today’sleading-edge laser applications.Cloudray manufac-tures scan lenses for laser systems that are used formarking, engraving, via hole drilling, and more.
• High StabilityWith the characteristics of wear resistance and high temperature resistance, it’s a stand jpt fiber laser lens and mopa fiber laser lens,also work with Raycus fiber laser,it has better thermal stability, and reduces thermal focus shift,In a typicalfiber laser lens configuration, the F- lens isused with one or two axis galvo mirrors that enablefast positioning and precision focusing of the laserbeam.

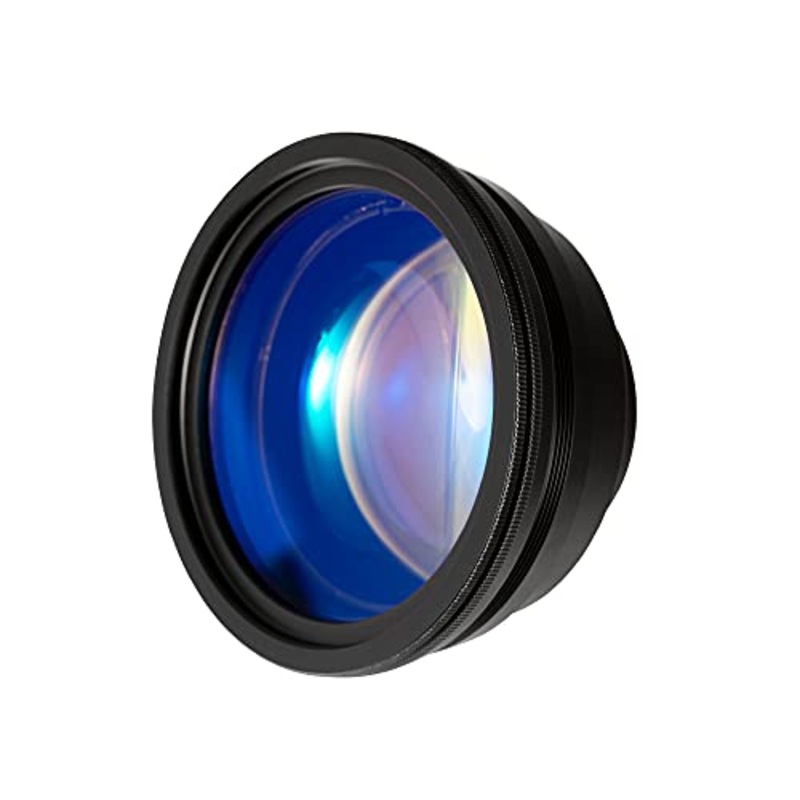

• 70x70mm f-theta lens 1064nmCloudray lens provides fast positioning and precision focusing so you’ll be able to mark steel, aluminum, gold, and more with a consistently exact spot anywhere in the lens’s 2.7×2.7″ field.
• Optical Fiber Laser Parts F100 cloudray lens for 1064nm wavelength lasers offers up to 97% transmittance with minimal distortion and antireflective coatings that ensure both excellent engraving and a long service life.
• Easy Installation The standard M85x1 threading ensures easy installation, quickly replacing or upgrading the old lens in most laser marking machines on the market. Note: Please adjust the focal length when change the F-Theta lens size.

Binding: Kitchen

model number: Default M85

Part Number: FSL02H70F100

Details:

F-Theta Lenses for galvo systems (Beam combiner is excluded)

EFL 100, 160, 254, 300, 330 mm

Accurate beam position

Design wavelength 1064 nm and 532 nm

F- scan lenses play a major role in many of today’sleading-edge laser applications.

Cloudray manufactures scan lenses for laser systems that are used formarking, engraving, via hole drilling, and more.

In a typical scan lens configuration, the F- lens isused with one or two axis galvo mirrors that enable

fast positioning and precision focusing of the laserbeam.

While standard focusing lenses deliver a focusedspot to only one point, scan lenses deliver a focused

spot to many points on a Scan Field: or workpiece.

They also require special considerations in theirdesign and use.

Packing List:

F-theta Lens x1pcs

EAN: 0669819728446

Package Dimensions: 7.8 x 5.4 x 4.4 inches
