Brand: CNCTOPBAOS

Features:

• Upgrade Version CNC3018 Pro Max with offline controllerMini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018 PRO MAX machine is very easy to install,stable structure,our parcel also include english user manual.Supporting files:G-code (.nc/.txt/.tape/.gcode)
• Working area30x18x4.5cm (11.8 x 7.1 x 1.8);Frame size: 42x35x27cm (16.53 x 13.78 x 10.63);Type:USB port Desktop cnc routerSystem requirementsWindows XP / Win 7 / Win 8 / Win 10 / Linux; Can’t support Apple product ;
• Spindle&Stepper Motor775 spindle motor (12-36V) 24V:10000r / min; Collet: ER11 3.175mm (Can be equipped with 0-7mm); Nema17 42 stepper motor 1.33A/0.3N.m/43oz-in
• Main applicationCan be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items. if you have the module,you also can change the spindle to a 3pins module,also can carve the kraft paper, wood, leather(wallet), bamboo.
• GRBL SoftwareOur parcel include a 4G USB flash drive,it include the installation instructions,user manual and GRBL software.Upgraded GRBL1.1 Control BoardAdded the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support maximum 20000rpm spindle,and also can support 0.5W-20W module.

Binding: Tools & Home Improvement

Part Number: 3018

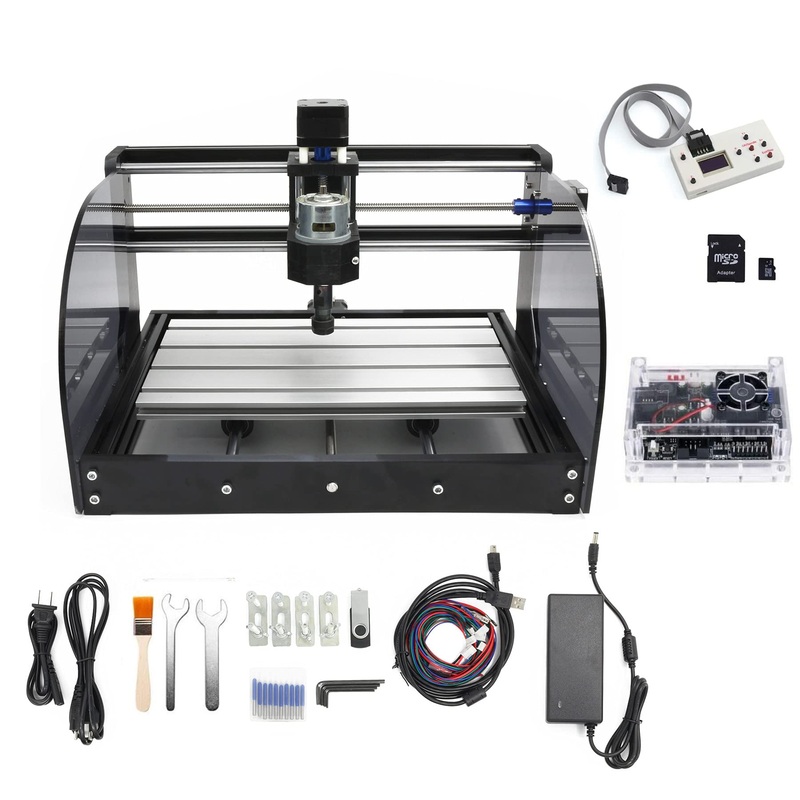

Details: Package include:
1 set 3018 Pro Max CNC Router Kit w/ ER11 Collet
1x GRBL 1.1f Control Board
1 x Offline controller
1x Power Supply
10x 200.1mm Drill Bits
1Set Allen Wrench
1x 4G USB flash drive include english user manual & GRBL software

Specification:
Working area: 30x18x4.5cm(approx.11.81×7.08×1.77 inches)
Frame size: 42x35x27cm(approximately 16.53×13.78×10.63 inches)
Material: Aluminum Alloy
Processing thickness:4.5cm (height 6.4cm)
Screw rod: T8 screw rod, lead 4mm, double copper nut backlash
Connection: PC-USB connection
Control software: Grbl Controller

Stepper motor: 42 stepper motor1.3A,0.25N.m
Spindle: 775 spindle motor (12-36V) 24V:10000r/min
Power: 24V 5.6A power adapter (input voltage 110-240V)
System requirements:Windows XP / Win 7 / Win 8 / Win 10. Linux;
Main application:Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

Control Board:
Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-24V
Master chip: atmel 328P (arduino nano)
Spindle PWM speed: Support;supports 0-100% adjustable PWM power.support P W M / T T L signal control,
Power Interface: 5.5-2.5mm DC interface

Support limit switch, tool setting, steering gear, cooling fan and other functions

offline control:
1. Manually control:manuallyadjust X,Y,Z axis location as engraving starting point,open/close spindle,open/close cooling fan
2. File engraving:after off-line controllersave file,it can connect the GRBL control board and process engraving, no need to connect PC computer
3. Save file:after the off-line controller connect PC

EAN: 0619191628254

Package Dimensions: 17.4 x 9.6 x 6.9 inches
