Brand: CNCTOPBAOS

Features:

• Rotation 4th AxisModel:K12-100mm; Chuck Type:K12-100mm 4 Jaw Chuck;Inner through hole diameter/shaft hollow diameter is 22mm; with accessories:1 Set of Anti-claw and wrenches
• Stepper motorNema23 2-phase 3A stepper motor 57x57x76mm 4-lead wires: Red wire=A+;Green wire=A-;Yellow wire=B+;Blue wire=B- port.
• MT2 TailstockCenter height: 65mm;Total height: 115mm Reducing ratio6:1 (belt deceleration mode) ; Angle: 0.3 / step
• AdvantagesRust proof coating process,stable 4 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life.
• Application The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars, bamboo joints, etc.

Part Number: S23

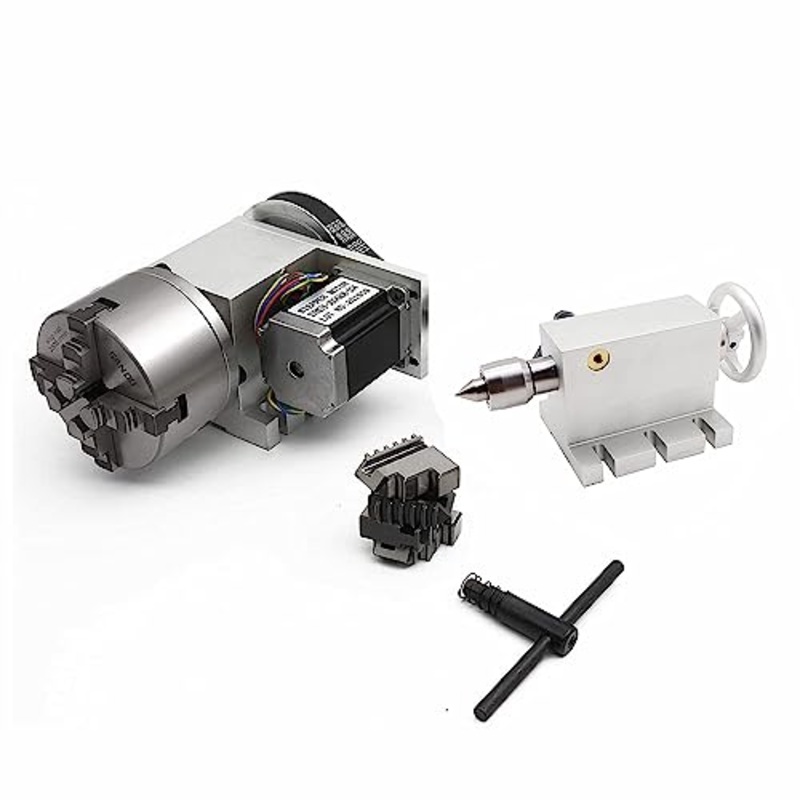

Details: Package include:
1set 4th axis K12 100mm ( Includes stepper motor and 4 jaw chuck) Ratio 6:1
1 x 65mm Tailstock
Descriptions:
Chuck type:K12 100mm 4 jaw centering chuck

Center height:65mm

Total height:115mm

Angle:0.3/ step

Gear box output shaft diameter:25mm

Reducing ratio:6:1(belt deceleration mode)

Stepper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings:the pulses required for 1

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) 360

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings:1 pulse along the angle

360/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125
Tailstock type:

Center Height:65mm
Stretch distance:50mm
Top tip: Activity type
Axial locking wrench for tailstock
Stepper Motor:

Nema23 stepper motor 76mm

Shaft Diameter: 8mm

Shaft length: 25.5mm

StepAngle:1.8

Current: 3A

Voltage: 4.2V

TemperatureRise:80 cmax

Insulation Resistance:100MOhm(500V DC)

Holding Torque:18kg.cm

EAN: 0785004502711

Package Dimensions: 17.0 x 12.0 x 9.0 inches
