Brand: Coavoo

Features:

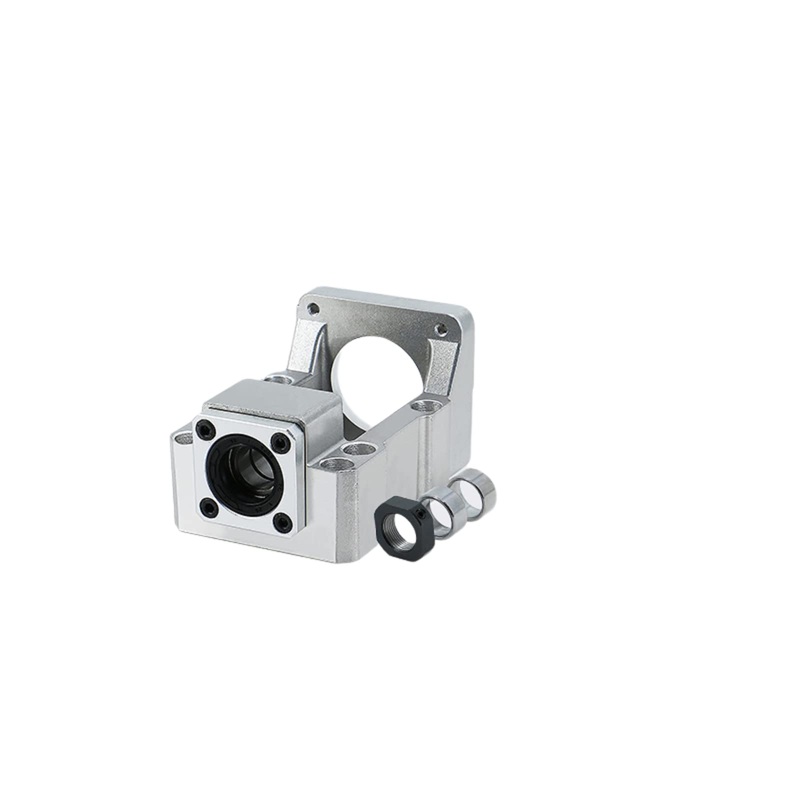

• This CNC kit part is functionally equivalent the fixed bearing ball block end support BK12 for linear motion Ball Screw 16mm and the aluminum motor mounting mount holder bracket for Nema 23 Stepper Motor
• The integration of the bearing ball block and motor mounting bracket, make the motor shaft, coupling axial, axial bearing hole, and ball screw axis all in a line strictly, the cnc transmission system with more accurately, less noise and longer life
• The material is cast aluminum, high hardness, shock resistance and high precision machining; the product is beautiful, rust proof and durable. We also have the cast steel style
• We provide the CAD and 3D files for the item, you could message us to get them; We also provide all the cnc ball screw parts accessories, if you have any needs, please let us know
• Widely UsedThe integrated bearing end support block and motor mount bracket holder are widely used for stepper motor, servo motors, the cnc ball screw, lead screw parts for the 3d printer router engraving milling machine

model number: CO-ZULVYTZ-1257

Part Number: CO-ZULVYTZ-1257

Details: Brand: Coavoo
Material: Cast Aluminum, we also have the material of the Cast steel, if you need, please message us
Model: Ball Bearing Block BK12 for Ball Screw 1604 1605 1610 1616 1620 16mm and Nema 23 Stepper Motor Mounting Bracket Kit
This package includes:
1pcs Housing
1pcs Gland
2pcs Topping Ring
2pcs Skeleton oil seal
2pcs Deep Groove Ball Bearing ( We also have the angular contact bearing model)
1pcs Locknut

Package Dimensions: 4.3 x 2.8 x 2.7 inches
