Brand: CrocSee

Color: Black

Features:

• The meter can only measure the active power(real power). It doesn’t show Apparent power. If you measure power from a DC-AC inverter, please make sure it’s PURE SINE WAVE. Otherwise the meter can be burnt or melted.

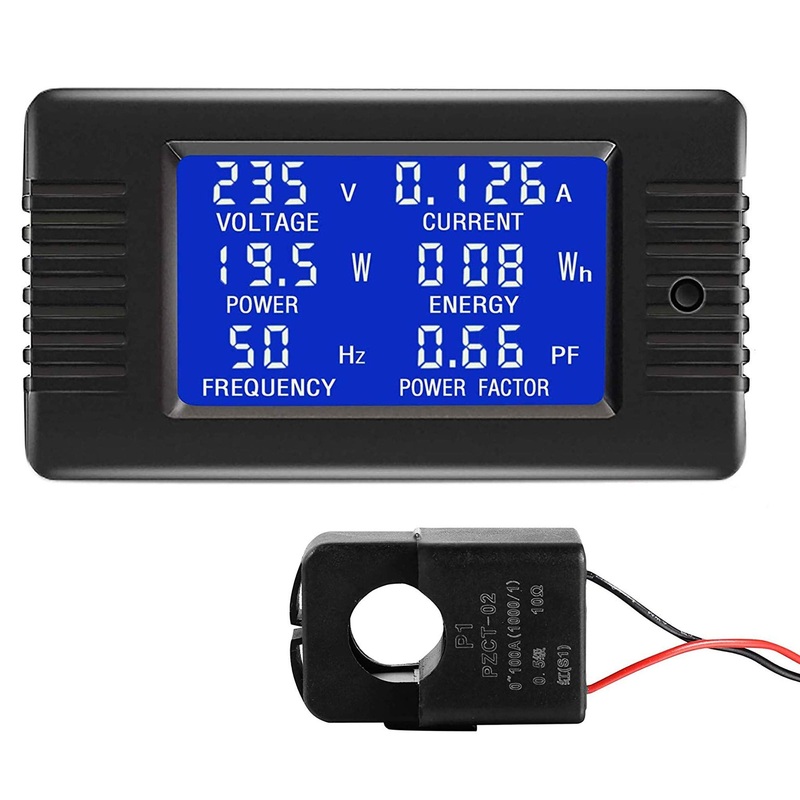

• 6 in 1 MeterThe large clear screen can display voltage/ current/ active power/ cumulative energy/ frequency/ power factor at the same time.
• Easy to Read: The backlight can be turned on/off manually, easy to read in the dark or in bright light.
• Overload Alarm Feature: Backlight and power digits will flash when exceeding the preset power value.
• One Button Control: The button is designed to control the backlight, reset energy data, or preset power alarm threshold.

model number: CRS-022B

Part Number: 3B039

Details: This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.

Main Specifications:

1. Working Voltage: 80 ~ 260VAC
2. Voltage Test Range: 80 ~ 260VAC
3. Rated Power: 100A/22000W
4. Operating Frequency: 45/65Hz
5. Operating Temperature Range: 14~140/-10~60
6. Measurement Accuracy: 1%

Test Range:

1. Voltage: 80~260V
2. Current: 0~100A
3. Power: 0~22kW
4. Energy: 0~999kWh
5. Frequency: 45~65Hz
6. Power Factor: 0~1PF

Cautions

1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don’t use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.
3. Wiring order can not be wrong.
4. This module is suitable for indoor applications, please do not use outdoors.

Package includes:
1x AC Power Multimeter
1x 100A Split Core Current Transformer

Warranty:
1-year free replacement or full refund without return.
If the item you have received is defective in any way, please message us for free replacement or refund without return.

EAN: 0689749968392

Package Dimensions: 5.4 x 3.7 x 1.3 inches
