Brand: FUNGDO

Features:

• 1: Big Curing SizeUpdate to 8.27″x8.67″x10.24″(21*22*26CM) enough for model from 10.1 inch or small LCD Printer to use.
• 2: Easy to Assemble,just need to open the enclosure ,put in the solar turntable and lock the UV light ,you can start the curing station
• 3: Easy to operate and strong structure, with front open door and dark observation window to protect eyes. the enclosure with plastic board inside the water proof fiber
• 4: More Powerful,with reflective inner 6 sides to maximum use the UV light, the light driven turntable will let model bing cured more even.
• 5: Comparing to expensive curing cabinet,its economic, comparing to other DIY enclosure, save your time. The UV lamp is replaceable, all UV light beads have a life time, so when the light become weak, can just replace the UV lamp to renew the curing chamber

model number: UVGIFT011

Part Number: UVGIFT011

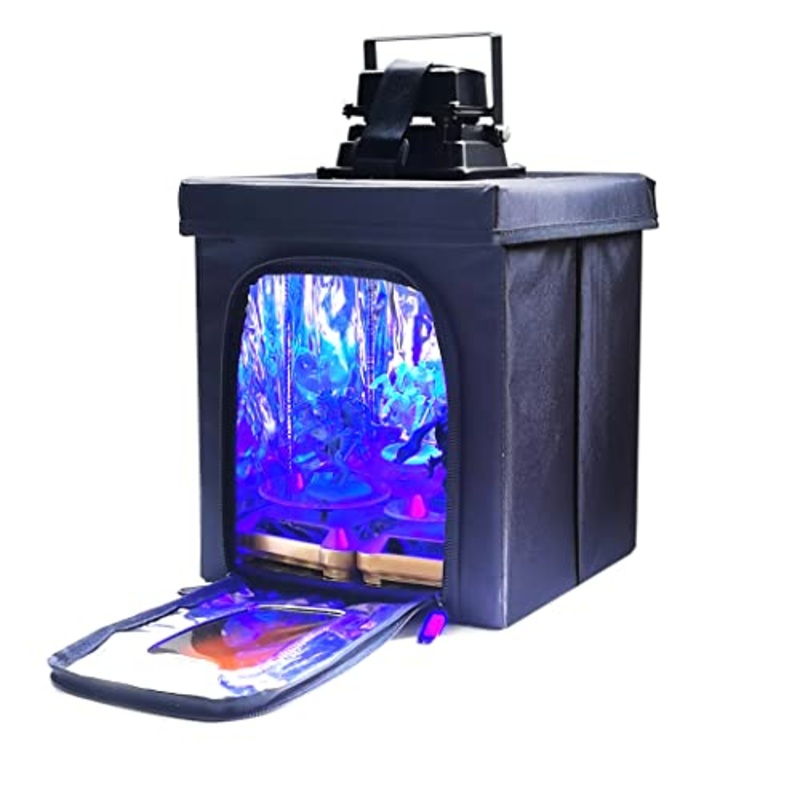

Details: This is a most economic DIY curing station solution, within 20 minutes, you can get a small curing station for 5.5″/6″ in LCD printer works post processing
This UV LED light with 6 high power 405nm UV LED beads , can fast curing the 405nm UV resin printed objects, make the objects solid efficiently and use less time than usually ways
Within 5 cm to the light, the resin can be cure within 10-15 seconds, but thicker parts need more time.

UV Light Details
Light Output . 6W power and 60W UV light affect
Power Input: AC 85V-264V, 50-60Hz 0.3A
Max Output: DC:10-27V 300mA+/-5%
UV light Size: 115x87x76 mm

Gift Box Details
Gift box size:140*110*220mm
Curing Space: 150*140*170mm(5.9*5.5*6.7inch), bigger than most 5.5 LCD 3D Printer build volume

Material : Strong Card Paper Board
Color:Black
Watch window color:Tea Black
Accessories: reflection sheet*4 ,M4 screw(including nut and pad)*4,Light support board*1,Screw Driver*1 ,Assemble manual *1

Solar Turntable Details:
Product material: ABS
Color:Silver
Heat resistant temperature: 80
Cold resistance temperature: -20
Solar battery voltage 1.2V
Maximum weight load: about 300g-500g
Maximum rotation speed :4.5 circles/minutes
Size: approx. 10 x 10 x 4.5cm / 3.94 x 3.94 x 1.77 inch
Tray diameter: approx. 9cm / 3.54 inch
The Solar turntable driven by the UV light, dont have timer and power switch, the switch of UV light control it working indirectly.

The parcking list
1* UV light(Black) with Standard US adapter
1*solar turntable display
1*Special gift box can change to use as curing enclosure(including assemble accessories

We also have UV light and solar turntable listed separately, if you find broken at UV light or Solar truntable ,Please contact us to get fast free replacement

EAN: 0785197865433

Package Dimensions: 12.0 x 11.3 x 6.5 inches
