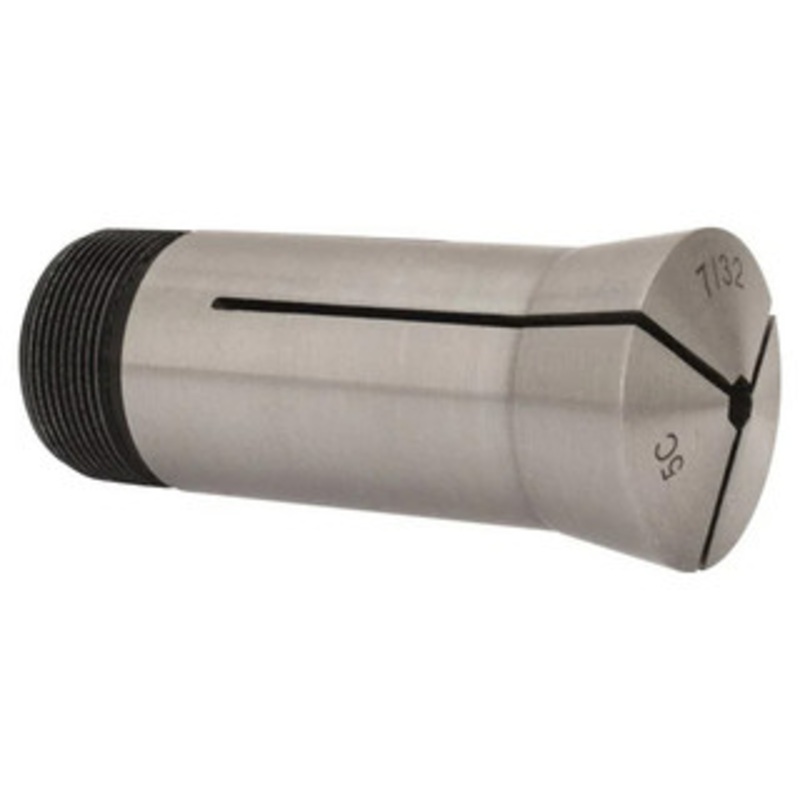

Interstate 5C Hex Collet, 7/32″

• Hex collets are used for holding hexagon shape workpieces
• Within 0.005″ TIR 1″ from face
• Inside thread 1.041 x 24 R.H.
• Outside thread 1.240 x 20 R.H.

Specifications:

Type Hex Size (Inch) 7/32 Size (Decimal Inch) 0.2188 Overall Length (mm) 83.30 Overall Length (Decimal Inch) 3.28 Internal Thread Size 1.041-24 External Thread Size 1.242-20 Material Steel TIR (mm) 0.0127 TIR (Decimal Inch) 0.003150 PSC Code 5136
