Thread Size #5-40 UNC Thread Limit H2 Flutes 2 Thread Length 5/8″ OAL 1-15/16″

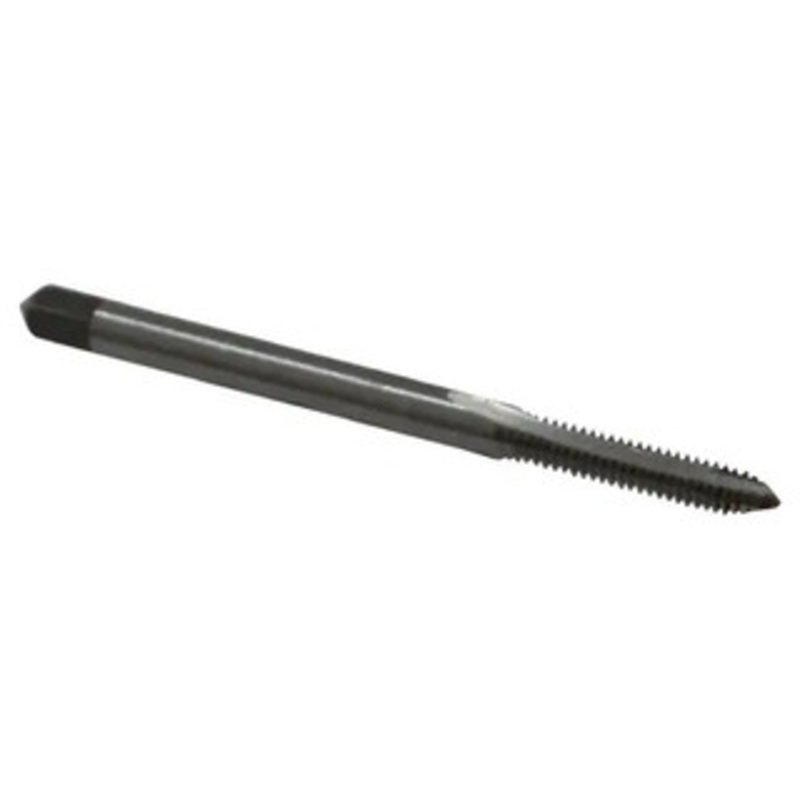

Interstate High Speed Steel Spiral Point Tap, #5-40 UNC, H2 Thread Limit, 2 Flutes

Plug Style Ground Thread

#5-40 UNC 2B/3B 2 Flute Bright Finish High Speed Steel Spiral Point Tap
Plug Chamfer, Right Hand Thread, 1-15/16″ OAL, 5/8″ Thread Length, H2

Features:

• Spiral point taps are the most efficient, rigid and useful cutting taps and are recommended for through holes in most materials
• Plug style taps have up to five threads chamfered
• Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
• Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
• High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials

Specifications:

Thread Size (Inch) #5-40 Number of Flutes 2 Chamfer Plug Class of Fit 2B/3B Thread Limit H2 Finish/Coating Bright Material High Speed Steel Through Coolant NonThrough Coolant Thread Direction Right Hand Overall Length (Inch) 1-15/16 Oversize No Thread Standard UNC Thread Length (Inch) 5/8
