Brand: KeeYees

Features:

• Stable performance A4988 Driver Chip is low power consumption and will not be too hot during use. The performance is more stable than chip.
• DC Power cable The DC power cord can quickly connect to the DC power adapter and power the CNC shield board. Save time and more securer cable connection Plug and Work.
• CNC Shield This is the latest version of the expansion board, which can be used for engraving machines and 3D printers. It can drive 4 A4988 stepper motors.
• With 20 Pcs Jumpers When setting up CNC projects, jumper caps are necessary accessories. There are 20 of them in the kit, enough for most project.
• Reliable technical support Please visit github (github: Keeyees/KY-102) to get relevant information or can contact us on Amazon, we will send PDF Document to you.

Part Number: CNCA4988

Details: CNC Expansion Board:
– GRBL 0.9 compatible
– Runs on 12-36V DC
– 4-Axis support: X, Y, Z
– It can drive 4 stepper motors, and each stepper motor only needs 2 IO ports.
That is to say, 6 IO ports can manage 3 stepper motors very well, which is very convenient to use.

A4988 Stepper Motor Driver:
– Size: 20*15*11mm
– Heat Sink Size: 9*9*5mm
– Minimum operating voltage: 8V
– Maximum operating voltage: 35V
– Continuous current per phase: 1Av – Maximum current per phase: 2A
– Minimum logic voltage: 3V
– Maximum logic voltage: 5.5V
– Thermal shutdown circuitry
– Ground fault protection
– Load short-circuit protection
– Microstep resolutions: Full, 1/2, 1/4, 1/8 and 1/16

KeeYees Board:
– microcontroller
– Input voltage: 7-12V
– 5V Electric current: 500MA
– 3.3V Electric current: 50MA
– 14 Digital I/O Pins (6 PWM outputs)
– 8 Analog Inputs
– 32k Flash Memory

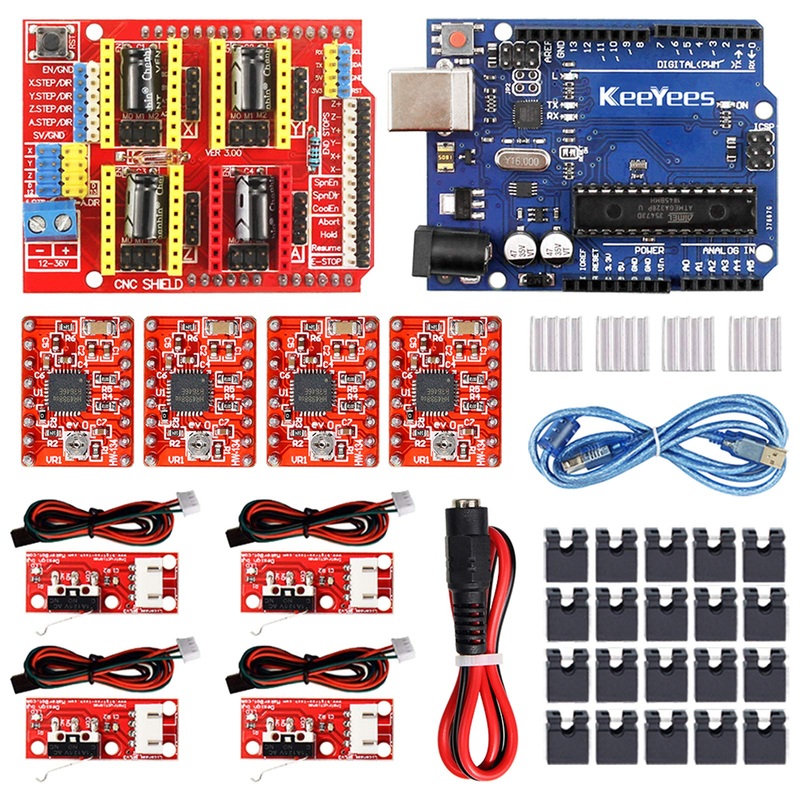

Package included:
1 x CNC Shield Board
1 x KeeYees Board
4 x A4988 Stepper Motor Driver with Heat Sink
1 x Female DC Power Cable
4 x Mechanical Switch Endstop
20 x 2.54mm Black Jumper Caps

EAN: 0744678331621

Package Dimensions: 8.7 x 5.6 x 1.7 inches
