Brand: Fafeicy

Color: Sliver

Features:

• Easy Adjustment: The router table lift tool has a crank handle, you can easily and accurately adjust the height of the milling cutter from above the table top.
• Wide lifting range: The base supports lifting height up to 51mm, and supports machine diameters from 64mm to 66mm, which is very suitable for small trimming machines.
• DIY Router Lift Table: This router lift is suitable for making your own high-precision woodworking router table, easy to install and operate.
• High-quality material: The router table DIY lifter is composed of aluminum alloy and stainless steel, anodized, CNC finishing, with high strength, anti-rust and resistance.
• Firm clamping: The milling machine lift ensures firm and stable clamping, not easy to fall off, and improves overall efficiency.

model number: Fafeicyc8teryqz07-12

Part Number: Fafeicyc8teryqz07-12

Details: Specifition:

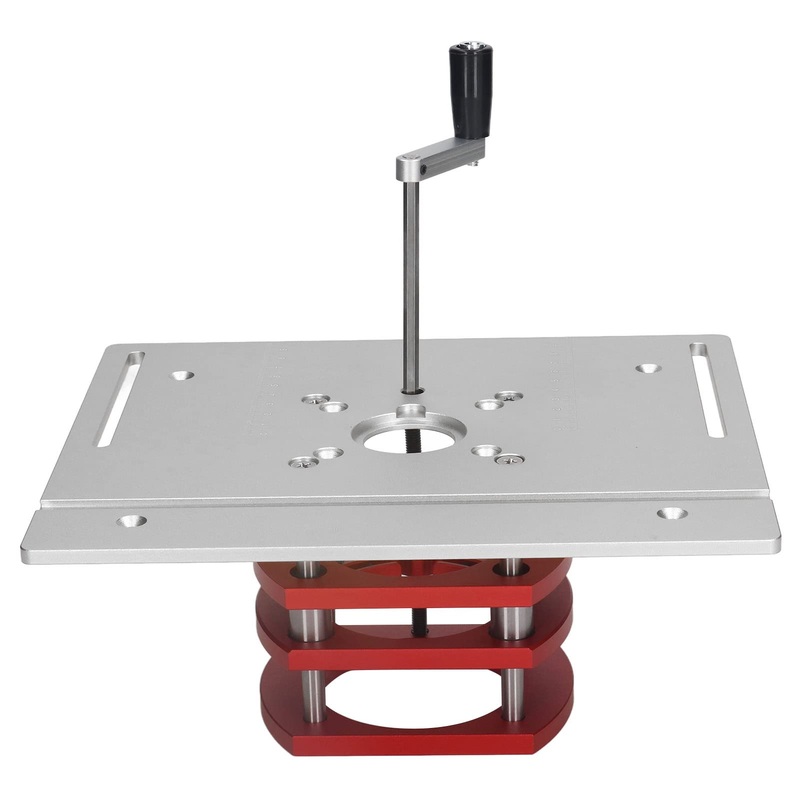

Item Type: Router Lift
Lifting Base Material: Aluminum alloy, stainless steel.
Panel Material: Aluminum Alloy
Table Size: Approx. 240 x 200mm / 9.45 x 7.87in
Maximum Lifting Stroke: Approx. 51mm / 2.01in
Lifting Method: Manual lifting, equipped with manual lifting lever.
Installation Screw Hole Position: Approx. 70 x 62mm / 2.76 x 2.44in
Applicable Trimming Machine: Universal type, suitable for trimming machines with motor diameter between 64 ~ 66mm / 2.52 ~ 2.6in (approx.)

PackageList:
1 x Woodworking Lift Base
1 x Handle
4 x Screw
1 x Hex Wrench
1 x Flip Board
2 x Insert Ring

Package Dimensions: 9.8 x 8.3 x 5.5 inches
