Brand: SainSmart

Features:

• High Quality: Nano Blue Coating for extended tool life and performance. Perfect for Roughing operations, slots and more.
• Efficient Cuts: The 2-Flute Straight Router Bits have a mirror polish and large chip space which produces smooth cutting and fast chip-removal.
• Cutting Edge Diameter (CED): 3.175mm (1/8″) approx. Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
• Suitable Material: Suitable for MDF, PVC, Acrylic, wood, solid wood, chipboard, plywood, organic board, core board, etc. Widely used for cutting/ engraving/ carving/ grooving/ slotting/ drilling/ hollowing/ positioning/ roughing / milling.
• Application: Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc. Compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. To learn more about how to choose the right bits to meet your needs, please find the Comparison Chart (CNC Bits Buying Guide) at the Product Guides and Documents Section below.

Part Number: 2-Flute Flat Nose

Details: SPECIFICATIONS

Shank Diameter: 3.175mm
Cutting Edge Length: 17mm
Overall Length: 38mm (Tolerance: 1-2mm)
Cutting Edge Diameter: 3.175mm; 10Pcs

Innovative Nano Blue Coat

Chemical Composition: Ni-La203

Physical Characteristics:

1. Enhance the hardness of the bits.
2. Reduce the frictional resistance coefficient of the bits at high speed to improve the smoothness of the machined surface.
3. Increase the heat dissipation performance of the bits to avoid the influence of the crystal structure change due to excessive
temperature.
4. Reduce the phenomenon of chipping of the cutting edge. Enhance the elasticity of the bits. The impurities of the workpiece
can be elastically skipped to avoid damage to the cutting edge.
5. Extend service life.
6. Since the carbide bit has high hardness and is relatively brittle, the machine speed range should be controlled during use.

WHAT’S INCLUDED?

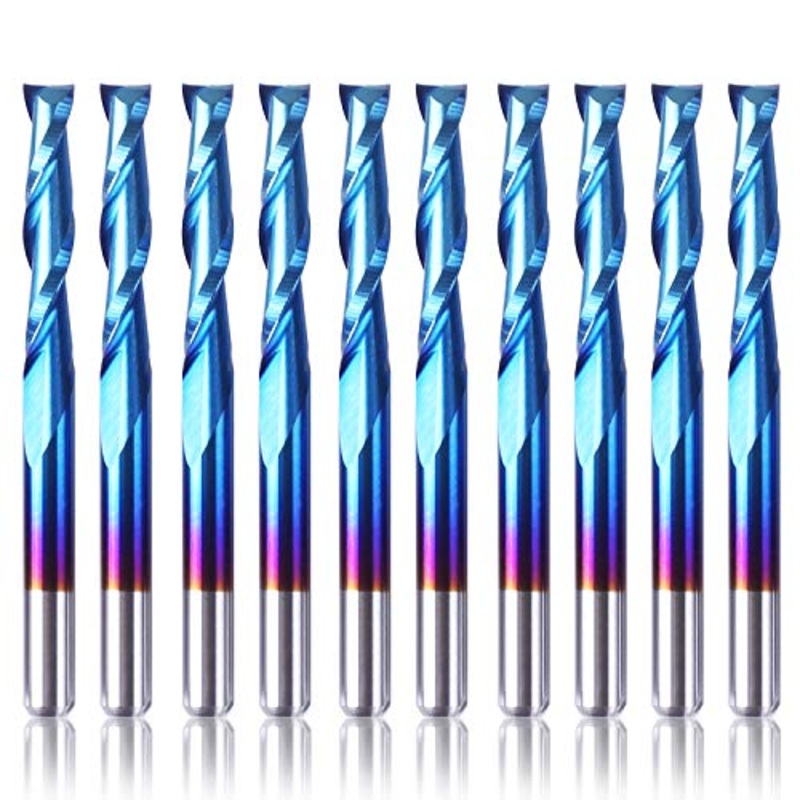

1 x Set (10Pcs Nano Blue Coat 2 Flute Flat Nose End Mill CNC Router Bits)

EAN: 4897093841377

Package Dimensions: 3.4 x 2.0 x 0.4 inches
