Brand: TECHTONGDA

Features:

• Woodworking Edge BanderThe woodworking edge bander is a versatile machine designed for various sizes of curved and straight edge banding. It’s the preferred choice of professional woodworkers. It has compact structure, reasonable layout, beautiful appearance, with curved edge sealing, double-sided gluing, automatic tape breaking, pneumatic head, automatic plate feeding, upper and lower trimming, double-sided polishing and other functions.
• Curved and Straight Edge Banding The straight edge banding process can be carried out directly through the automatic board passing in one process. With its rotating edge banding device, this machine can easily handle curved and arched boards for edge banding. It finds wide applications in industries such as woodworking, furniture edge banding, cabinet processing, and home improvement projects.

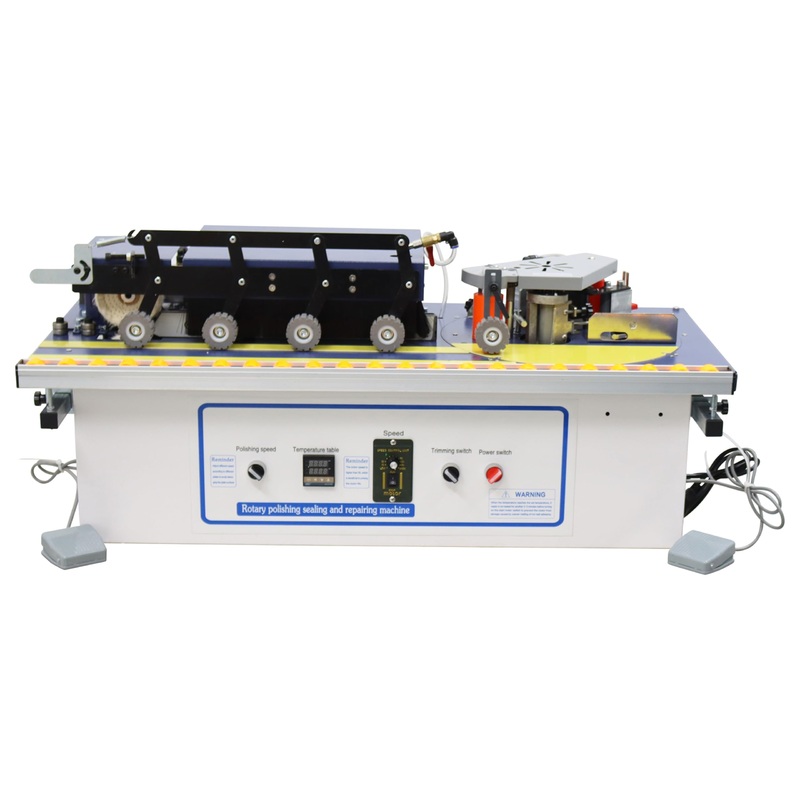

• Control PanelThe feeding speed, temperature control, and edge banding speed can all be independently adjusted using separate switches. The edging speed can be adjusted according to proficiency.
• Double-sided Gluing The edge bander offers automatic tape cutting and double-sided gluing capabilities, ensuring accurate adhesive placement and robust bonding. Easily adjust the glue quantity and banding speed using the pressure roller for optimal results. Its double rubber wheels design ensures both sides of the gluing plate and edge sealing strip are coated with a layer of glue, providing adhesion.
• ApplicationThe edge banding machine can be placed on a workbench. Suitable for all kinds of plates and edge strips, such as: ABS, PVC, particle board, melamine board, fine wood board, MDF, integrated board, acrylic board, etc.

Details: Parameters
Voltage: 110V
Edging speed0-236inch/min (0-6m/min)
Conveying speed: 0-590inch/min (0-15m/min)
Edge banding machine power: 1200W
Trimming machine power: 800W
Edge thickness0.03-0.06inch (0.8-1.5mm)
Edge height0.47-1.77inch (12-45mm)
Heating time: 5-8min
Glue capacity: 1000ml
Trimming method: double-sided trimming
Gluing method: double-sided gluing
Control mode: intelligent temperature control
Break mode: Automatic break

EAN: 0840403729616

Part Number: L033195

model number: L033195
